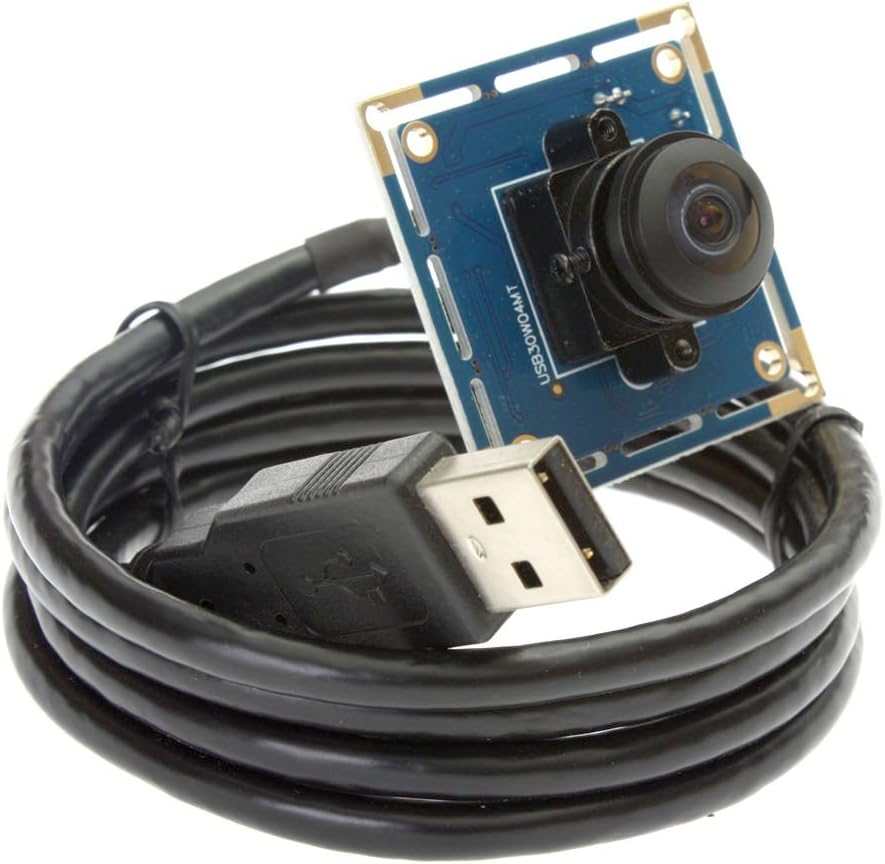

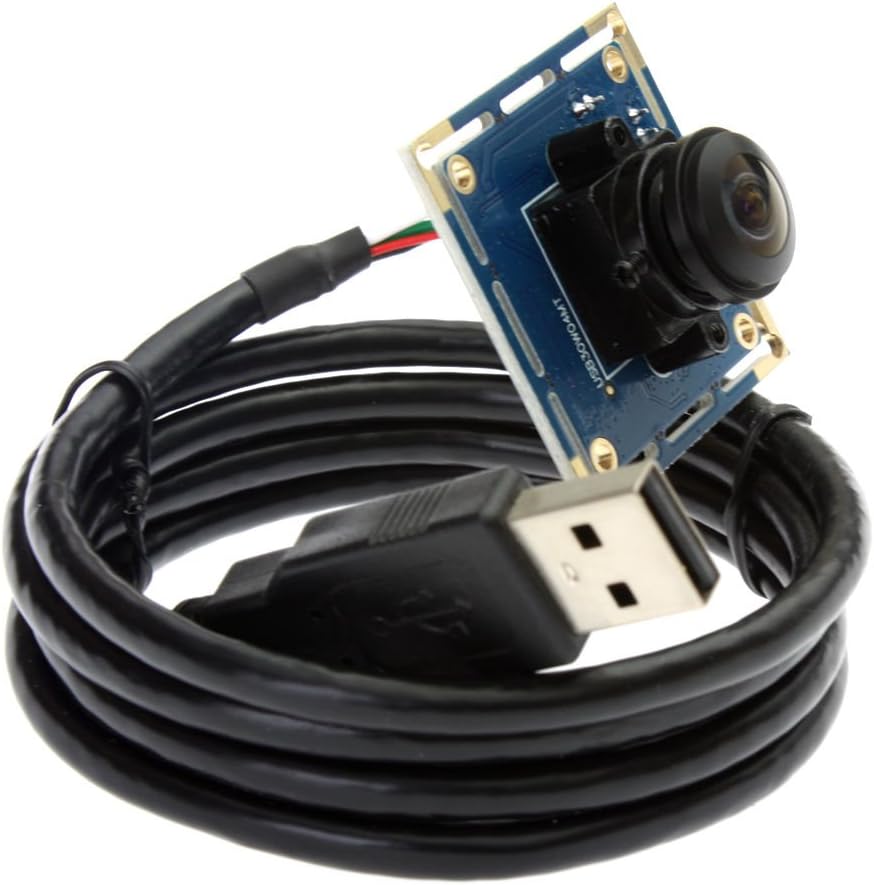

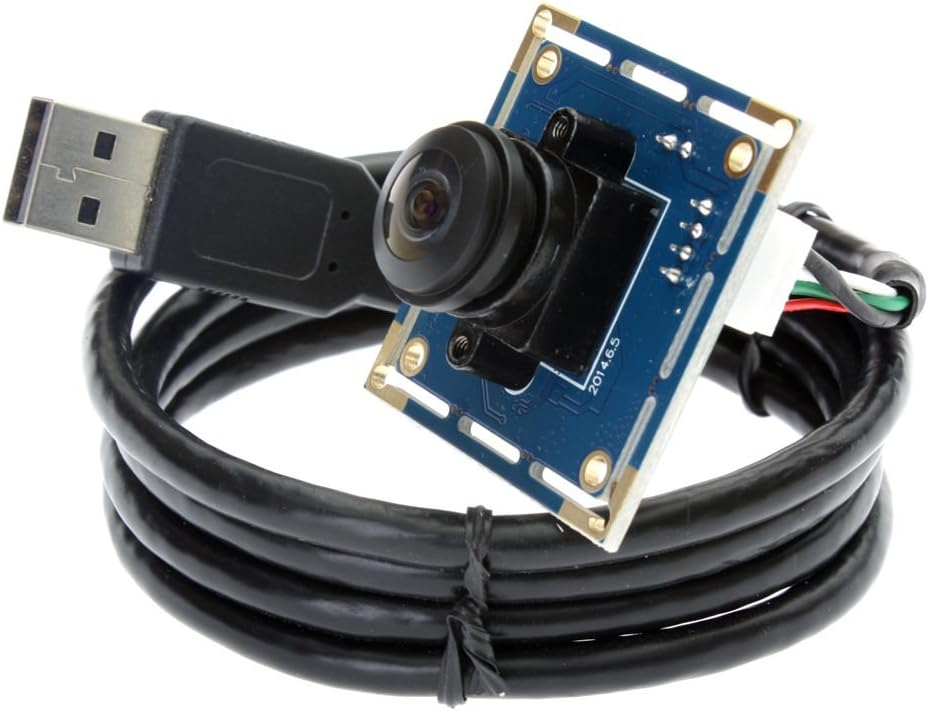

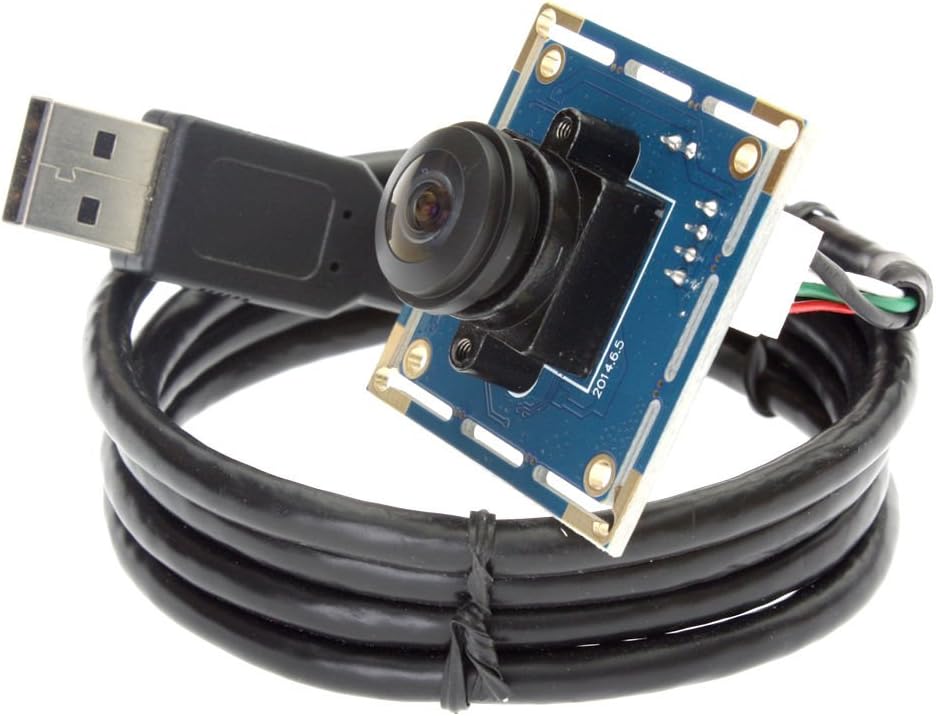

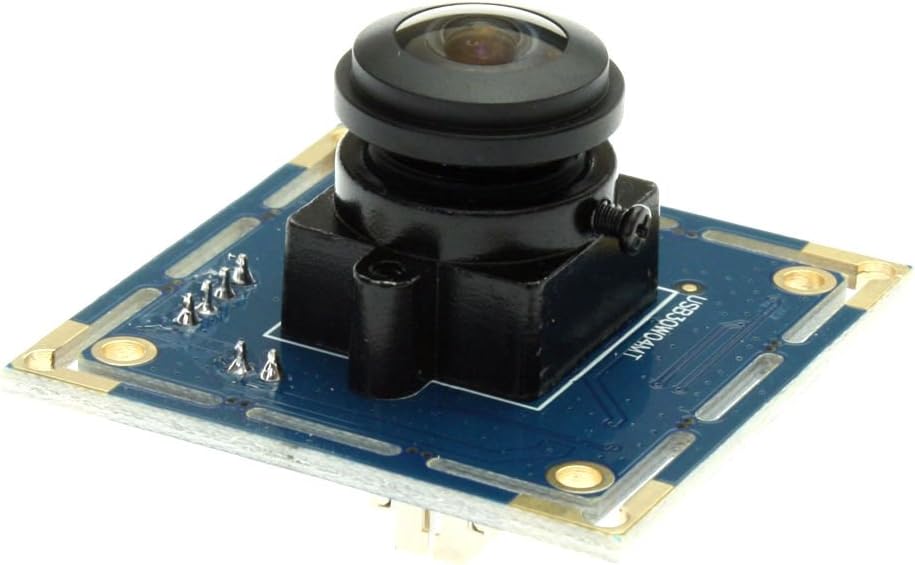

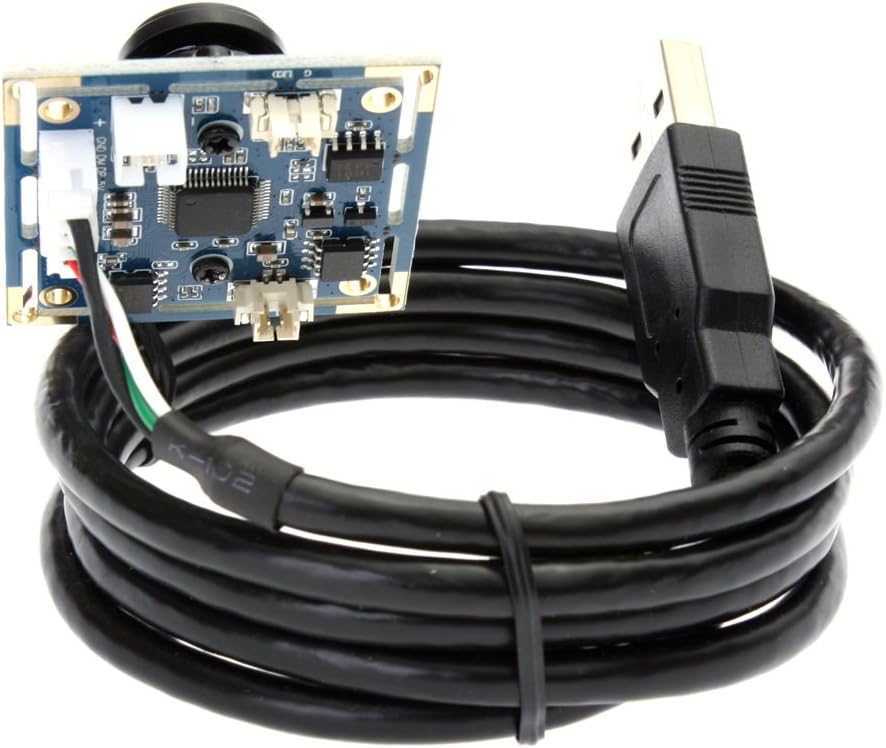

170degree Fisheye Wide Angle USB Camera Module with 640x480 Resolution C644
170degree Fisheye Wide Angle USB Camera Module with 640x480 Resolution C644
USB2.0 camera used for all kinds of PC OS system for atm machine,video conference,kiosk,medical equipment,endoscope etc.
170degree fisheye lens for wide angle view
YUY2 and MJPEG compression format optional
Support free driver, with UVC class
640x480 USB Camera ELP-USB30W4MT-L36 is VGA resolution for all kinds of house security and industrial use.
It also can optional to add IR Cut with IR LED baord for night vision USB2.0 Camera,
which we already have the model, that is ELP-USB30W04MT-RL36, which can search out on Amazon store too.
Specification:
Sensor:OV7725
size: 1/4 inch
Resolution: 640X480 VGA
Picture format: YUY2 and MJPEG optional/USB Protocal:USB2.0 HS/FS
Support free driver: USB Video Class(UVC)1.1
Auto exposure AEC/Support:Auto white blance AEB Support
Effective Pixels:
640 (H) x 480 (V) pixels/352 (H) x 288 (V) pixels/320 (H) x 240 (V) pixels /176(H) x 144(V) pixels/160 (H) x 120 (V) pixels
Performance:
640 (H) x 480 (V) pixels MJPEG: 30FPS, YUY2 30FPS
Adjustable parameters:Brightness/Contrast/Color saturation/Definition/Gamma/WB
Night vision: optional, can choose IR board
voltage: DC 5V/ current: 120mA/ work
temperature:DEGREES(-20~70)/Size:38X38, 32x32mm
Support OS:WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above
